Product Details:
|
| Shell Materials: | 6063 Alumium Alloy | Strips Materials: | Silicone Rubber Seals |
|---|---|---|---|
| Accessories: | 201 Stainless Steel (including Side Plate And Screws) | Type: | Concealed Type With Side Edge |

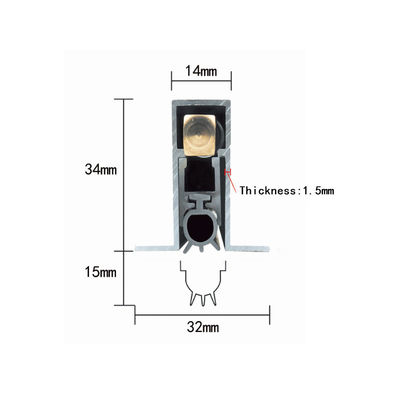

| Size: | 14*34-32mm | Length: | Can Do 300-1600mm |
| Stock Item Length: | 800mm, 915mm And 1000mm, Other Length Can Do Customized | Available Cut Length: | 800mm- Can Cut To 700mm, 915mm- Can Cut To 800mm, 1000mm- Can Cut To 900mm |
| High Light: | Dust Prevention Automatic Door Bottom Seals,1600mm Automatic Door Bottom Seals |
||

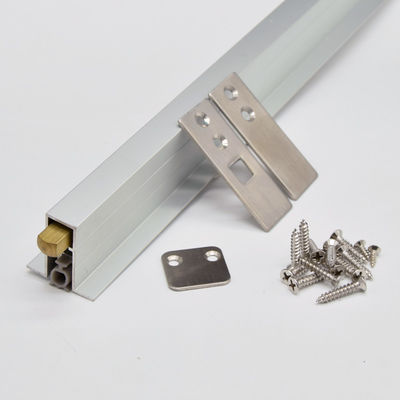

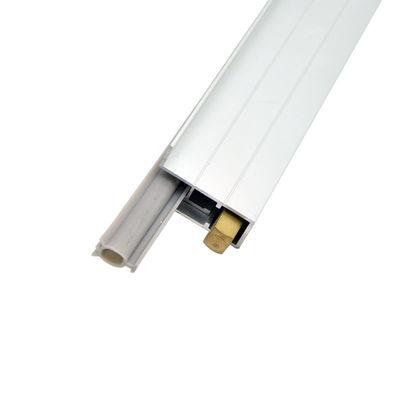

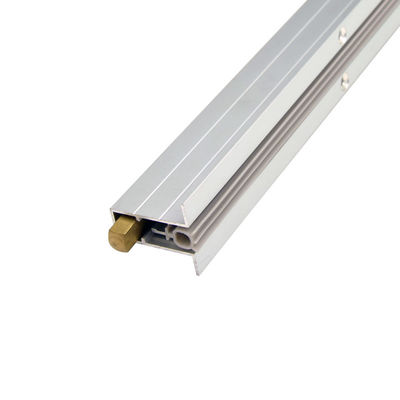

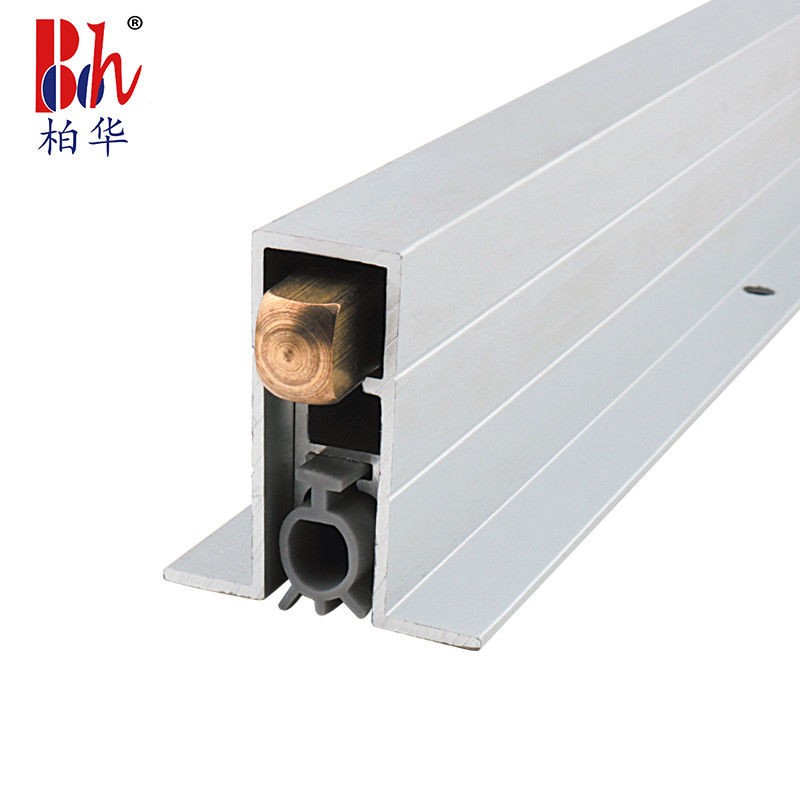

Heavy Duty Automatic Door Bottom Seals Concealed / Non-Visible Aluminium Weatherstrips With Side Edge
Features:
This item has the side edge on the bottom, can screw fix it from the door bottom, suitable for the metal door which no need to make the through groove in the door, cannot see any other things except the copper bolt, it is more invisiable. This Heavy Duty design makes it more fit the hotel door, entrance door or some other more heavier door.
Specifications:
| Item No.: | BH-M011 |
| Min/Max Gap: | 3mm to 14mm |
| Finish: | Clear Anodised |
| Fixing: | Concealed Screw Fix, Fixing holes are pre-slotted |
| Seal: | Grey Silicon Rubber |
| Fixed Part: | Stainless Steel, Including Screws |
| Size can do: | 300-1600mm |
| Regular length: | 800mm, 915mm, 1000mm |
| Regular length can cut length: |
800mm - cancut to 700mm, 915mm - can cut to 800mm, 1000mm - can cut to 900mm. |
