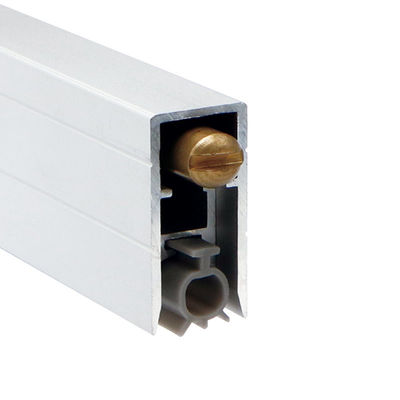

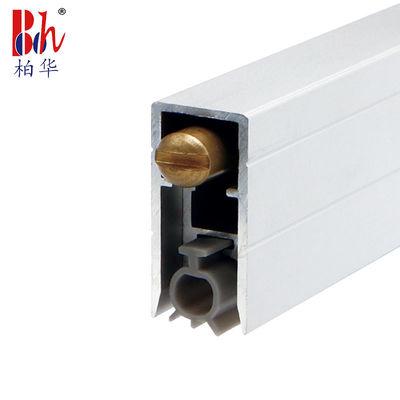

6063 Aluminium Concealed Door Bottom Seal U Shaped For Wooden Door

6063 Aluminium Concealed Door Bottom Seal U Shaped For Wooden Door
6063 Aluminium Concealed Door Bottom Seal U Shaped For Wooden Door 6063 Aluminium Concealed Door Bottom Seal U Shaped For Wooden Door 6063 Aluminium Concealed Door Bottom Seal U Shaped For Wooden Door 6063 Aluminium Concealed Door Bottom Seal U Shaped For Wooden Door

Large Image :  6063 Aluminium Concealed Door Bottom Seal U Shaped For Wooden Door

Product Details:
Place of Origin: China
Brand Name: BHMFT
Certification: CE
Model Number: BH-M021
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: EXW price US$ 6-12/ set
Packaging Details: each one packed by a PE bag, 20 sets in a carton, carton size: 105*17*10cm, gross weight is about 13kgs per carton.
Delivery Time: 15-20 days after receive the payment
Payment Terms: T/T
Supply Ability: 1000 sets per week

6063 Aluminium Concealed Door Bottom Seal U Shaped For Wooden Door

Description
Shell Materials: 6063 Alumium Alloy Strips Materials: Grey Silicone Sealing Strips
Accessories: Stainless Steel (including Screws) Type: Concealed

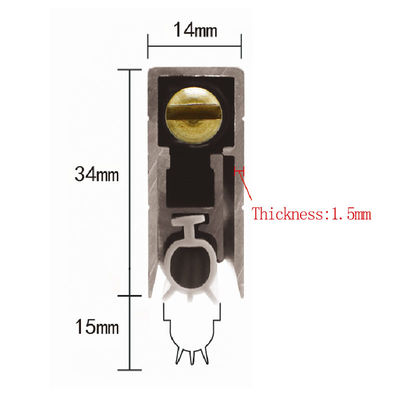

Size: 14*34mm Length: 300-1500mm
Regular Length: 800mm, 915mm, 1000mm Available Cut Length: 800mm- Cancut To 700mm, 915mm- Can Cut To 800mm, 1000mm- Can Cut To 900mm
High Light:

6063 Aluminium Concealed Door Bottom Seal

,

1500mm Concealed Door Bottom Seal

,

Concealed Door Bottom Seal Weatherstrips

U Shape Automatic Door Bottom Seals Concealed Aluminium Weatherstrips For Wooden Door Round Bolt





Features:



This Automatic Door Bottom Seals is similar as our item no.: BH-M021, U shape, size 14*34mm, but the copper bolt is round shape and the side plate with round head.



When it comes to soundproofing a door a tight seal is critical for proper sound control. Your largest gap is at the bottom of the door and nothing can seal that as well as an automatic door bottom.



Operated automatically by press against the door plug (the round copper bolt).
Adjust the adjustable plug (the round copper bolt) to achieve an optimum seal.
Fully put it into a 14mm x 34mm groove on the bottom of single and double butt hinged timber and metal doors.
Prevent dust, hot and cold air, noisy sound, light from door bottom
High quality silicone seal with long life service.




Specifications:

Item No.:  BH-M021
Min/Max Gap: 3mm to 14mm
Finish: Clear Anodised
Fixing: Concealed Screw Fix, Fixing holes are pre-slotted
Seal: Grey Silicon Rubber

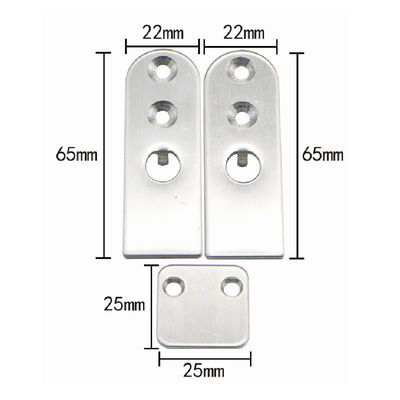

Fixed Part: Stainless Steel, Including Screws
Size can do: 300-1500mm
Regular length: 800mm, 915mm, 1000mm
Regular length can cut length:

800mm - cancut to 700mm,

915mm - can cut to 800mm,

1000mm - can cut to 900mm.



6063 Aluminium Concealed Door Bottom Seal U Shaped For Wooden Door 06063 Aluminium Concealed Door Bottom Seal U Shaped For Wooden Door 16063 Aluminium Concealed Door Bottom Seal U Shaped For Wooden Door 26063 Aluminium Concealed Door Bottom Seal U Shaped For Wooden Door 3
