Product Details:
|
| Materials: | Co-extruded PVC | Color: | Trnasperant |
|---|---|---|---|
| Size: | For 10mm Glass | Fit Groove Size: | Fit 13.8*9.8 Mm Groove |
| Length: | Can Do 300-3000mm Per Piece | Usage: | Clip The 10mm Glass And Then Put On The Groove. |
| Function: | Clip The Glass And Insert It To The Groove To Hold On The Glass | Apply To: | Aluminium Frame Glass Door Or Windows |
| High Light: | Co Extruded PVC Weather Stripping,PVC Weather Stripping 10mm,10mm Glass Door Strip |
||

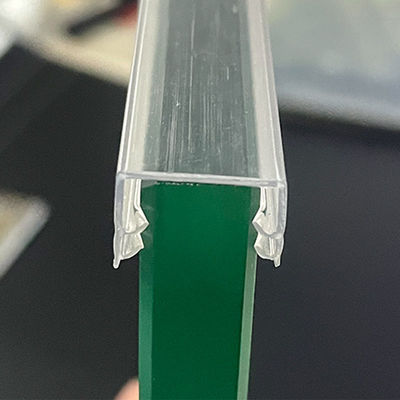

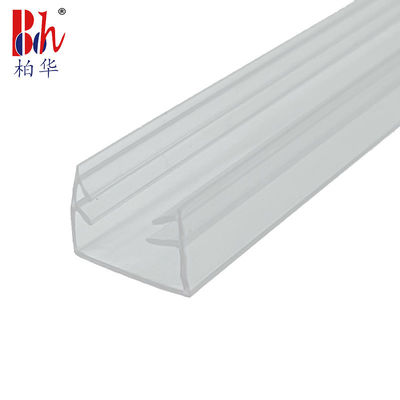

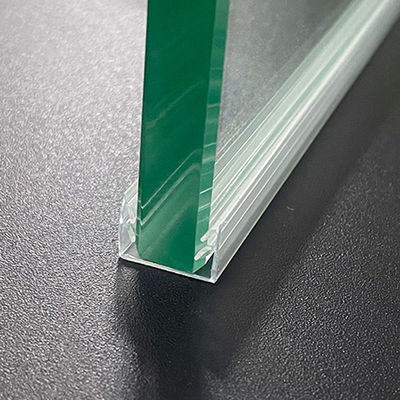

Transparent Co-extruded PVC Weather Stripping Glass Clip Strips for 10mm Glass Aluminium Frame Glass Door or Window
Features:
This transparent PVC strips is co-extruded by 2 hardness PVC, the outside U shape is made by hard PVC, the inside fins is makde by soft PVC, instead of the glass glue to hold on the 10mm glass into the aluminium frame, usually used for Aluminium Frame Glass Door or Window. It is very easy to install, can hold the glass stably.
This size is only suitable for the groove size 13.8*9.8mm, we can do the OEM, size can be customized based on the Aluminium profile. If you have the Aluminium profile, you can provide a piece of profile, we can make a new mold to do the fitable clip strips.
Specification:

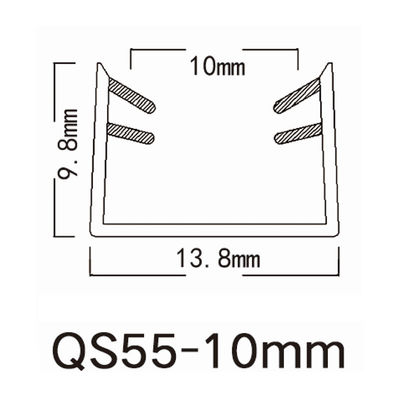

| Item No.: | QS55-10mm |
| Meterials | Co-extruded Transparent PVC |
| Usage | Clip the 10mm glass and then put on the groove. |
| Size | 13.8*9.8mm, suitable for 10mm grass |
| Colour | Transparent |
| Package | about 300 piece per carton |
| Advantages | Clip the glass and Insert it to the groove to hold on the glass |
