Product Details:
|
| Main Materials: | Alu | Sealing Strips: | TPE Co-extruded Strips |
|---|---|---|---|
| Fixed Part: | Stainless Steel (including Screws) | Type: | Concealed U Shape |
| Size: | 13*23mm | Available Length: | From 300 To 1500mm |
| Stock Item Length: | 800mm, 915mm, 1000mm | Available Cut Length: | 800mm- Cancut To 700mm, 915mm- Can Cut To 800mm, 1000mm- Can Cut To 900mm |
| Function: | Sound Proof, Dust Proof, Block Insects | Apply To: | Hotel Door, Home Door And Etc. |
| High Light: | 1500mm Length Automatic Door Bottom Seals,Dustproof Automatic Door Bottom Seals,Concealed Automatic Door Bottom Seals |
||

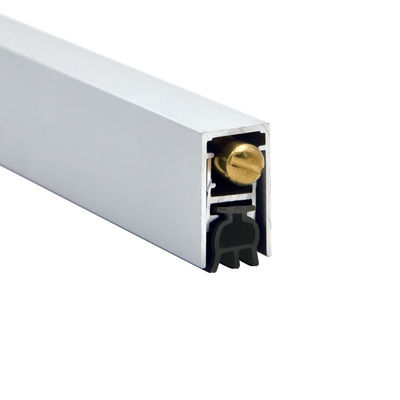

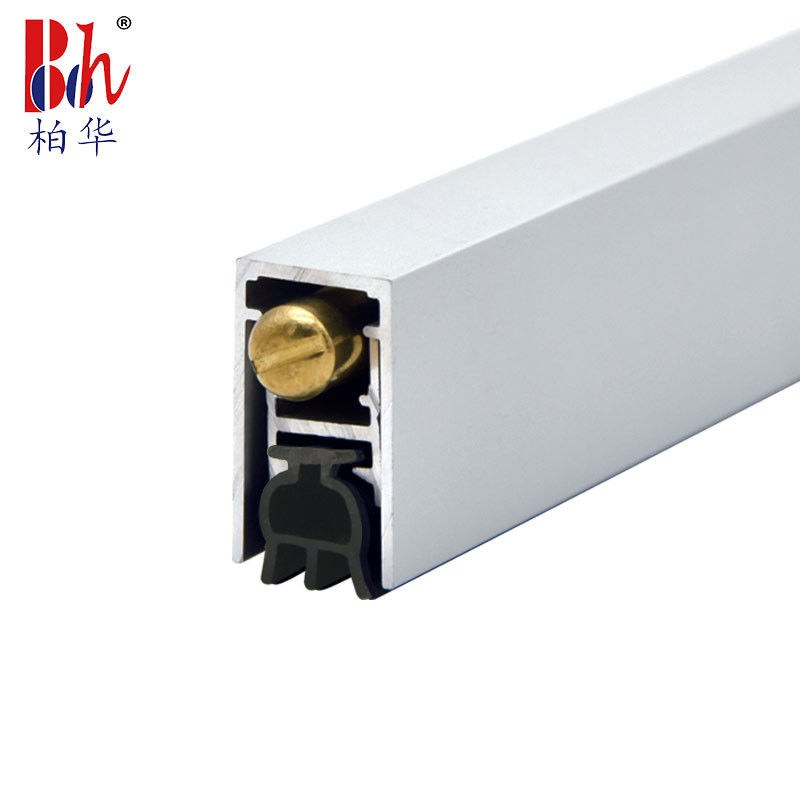

Dustproof Alu Automatic Door Bottom Seals Concealed Seals for Hotel Door
Features:
This Automatic Door Bottom Seals is a smallest size of the automatic drop down door bottom seals;
Operated automatically by pressure against the door jamb on its adjustable strike (the copper bolt).
Suitable for the wooden door, steel door, industry doors, hotel doors and etc.
Prevent the hot and cold air convection (energy save), and the light through the door bottom. Dustproof, Noise reduction.
The bottom strips is made by TPE co-extruded.
Beautiful 6063 aluminum body with gold color copper bolt.
Working principle : When the door is cloesed, the automatic drop down door bottom seal will automatically dropped down and then sealed the gaps between the door bottom and floor, when open the door, the seals will be retract into the aluminium shell.
Specifications:
| Item No.: | BH-M035 |
| Min/Max Gap: | 3mm to 10mm |
| Finish: | Clear Anodised |
| Fixing: | Concealed Screw Fix, Fixing holes are pre-slotted |
| Seal: | Black TPE co-extruded rubber strips |
| Fixed Part: | Stainless Steel, Including Screws |
| Size can do: | 300-1500mm |
| Regular length: | 800mm, 915mm, 1000mm |
| Regular length can cut length: |
800mm - cancut to 700mm, 915mm - can cut to 800mm, 1000mm - can cut to 900mm. |

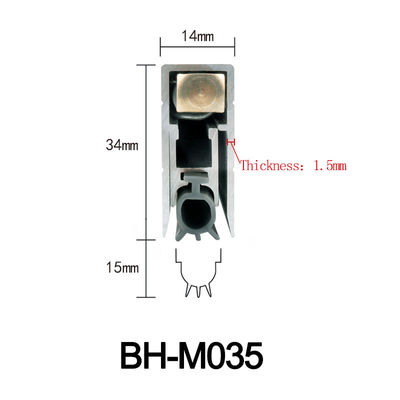

Size details:

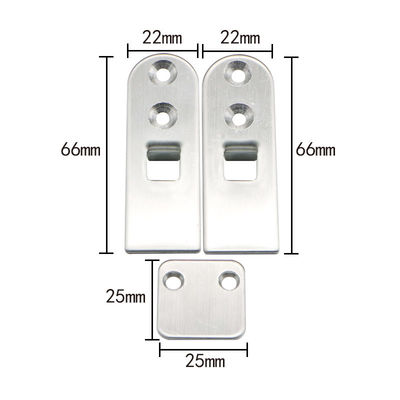

Stainless still accessories:
Packing:
