650mm Concealed Automatic Door Bottom Seals Heavy Duty Aluminium Weatherstrips

Certification
China Foshan Bohua Decoration Materials Co., Ltd. certification
China Foshan Bohua Decoration Materials Co., Ltd. certification
I'm Online Chat Now

650mm Concealed Automatic Door Bottom Seals Heavy Duty Aluminium Weatherstrips

650mm Concealed Automatic Door Bottom Seals Heavy Duty Aluminium Weatherstrips
650mm Concealed Automatic Door Bottom Seals Heavy Duty Aluminium Weatherstrips
650mm Concealed Automatic Door Bottom Seals Heavy Duty Aluminium Weatherstrips 650mm Concealed Automatic Door Bottom Seals Heavy Duty Aluminium Weatherstrips 650mm Concealed Automatic Door Bottom Seals Heavy Duty Aluminium Weatherstrips

Large Image :  650mm Concealed Automatic Door Bottom Seals Heavy Duty Aluminium Weatherstrips

Product Details:
Place of Origin: China
Brand Name: BHMFT
Certification: CE
Model Number: BH-M010-800
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: EXW price US$6.00/ set
Packaging Details: each one packed by a PE bag, 20 sets in a carton, carton size: 95*18*10cm, gross weight is about 11 kgs per carton.
Delivery Time: 7-10 days after receive the payment
Payment Terms: T/T
Supply Ability: 1000 sets per week

650mm Concealed Automatic Door Bottom Seals Heavy Duty Aluminium Weatherstrips

Description
Type: Concealed Shape: U Shape
Main Materials: 6063 Alumium Alloy With Silicon Strips Accessories: Stainless Steel Side Plate With Screws

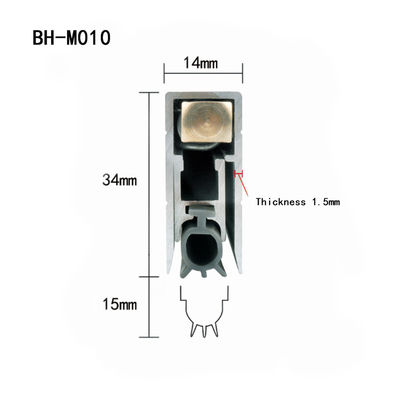

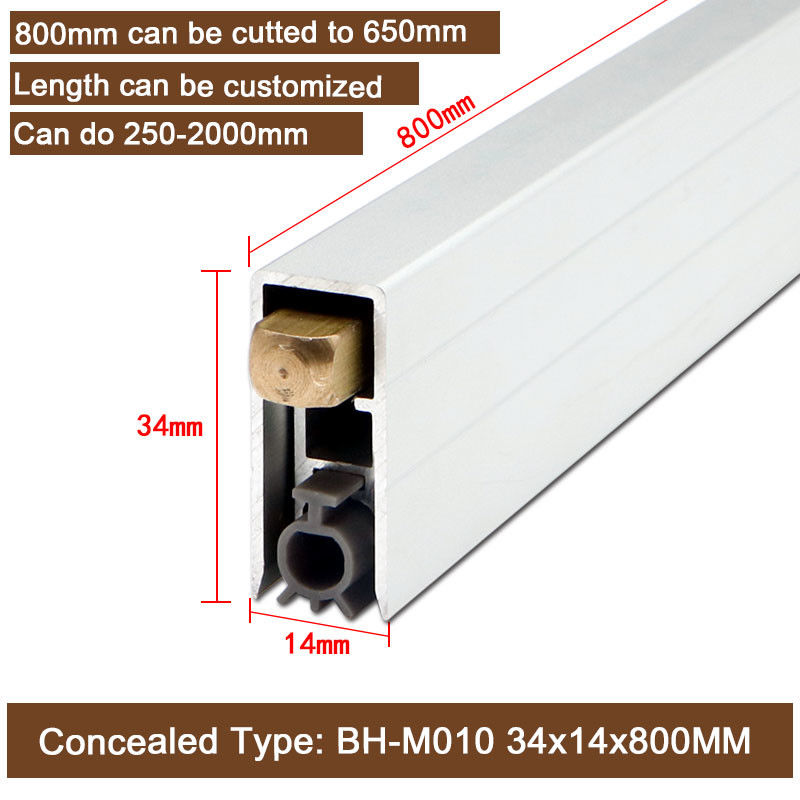

Size: 14*34*800mm Can It Be Cut?: Yes, 800mm Can Cut To 650mm
Does The Length Can Be Customized?: Yes, We Can Do The Length From 250mm To 2000mm
High Light:

Automatic Door Bottom Seals Heavy Duty

,

Automatic Door Bottom Seals 650mm

Concealed Automatic Door Bottom Seals Heavy Duty Aluminium Weatherstrips



This item is a Concealed Type door bottom seals, Heavy Duty, Strong internal structure makes it has a long service time.



Features:



1, Operated automatically by pressure against the door jamb on its adjustable copper bolt.
2, Screw in or out the adjustable copper bolt to achieve an optimum seal.
3, Fully morticed into a 14mm x 34mm prefabricated slot in the bottom of single and double butt hinged timber and metal doors.
4, Suitable for the wooden fire door, steel fire door, industry doors, hotel doors, entrance door, house door, office door and etc.
5, Prevent dust, hot and cold air, noisy sound, light, wind, insects and some other things from door bottom.
6, Smoothly 6063 aluminum body with copper bolt.
7, High quality silicone sealing strips with long life service.



Specifications:

Item No.:  BH-M010-800mm
Min/Max Gap: 3mm to 14mm
Finish: Anodised
Fixing: Concealed installation: inserted into the prefabricated slot at the bottom of the door, and fixed by the accompanying side plate and screws.
Seal: Silicon Strips: high temperature resistance, not easy to change, long service life.
Fixed Part: Stainless Steel plate, Screws
Size can do: 250-2000mm
Regular length: 800mm, 915mm, 1000mm
Regular length can cut length:

800mm - cancut to 700mm,

915mm - can cut to 800mm,

1000mm - can cut to 900mm.



650mm Concealed Automatic Door Bottom Seals Heavy Duty Aluminium Weatherstrips 0

650mm Concealed Automatic Door Bottom Seals Heavy Duty Aluminium Weatherstrips 1

650mm Concealed Automatic Door Bottom Seals Heavy Duty Aluminium Weatherstrips 2650mm Concealed Automatic Door Bottom Seals Heavy Duty Aluminium Weatherstrips 3
