6063 Alumium Soundproof Door Bottom Seals Concealed Automatic Drop Down Weather Strips

6063 Alumium Soundproof Door Bottom Seals Concealed Automatic Drop Down Weather Strips
6063 Alumium Soundproof Door Bottom Seals Concealed Automatic Drop Down Weather Strips 6063 Alumium Soundproof Door Bottom Seals Concealed Automatic Drop Down Weather Strips

Large Image :  6063 Alumium Soundproof Door Bottom Seals Concealed Automatic Drop Down Weather Strips

Product Details:
Place of Origin: China
Brand Name: BHMFT
Certification: CE
Model Number: BH-M001-800
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: EXW price US$ 6.5 / set
Packaging Details: each one packed by a PE bag, 20 sets in a carton, carton size: 93*18*10cm, gross weight is about 10kgs per carton.
Delivery Time: 7-10 days after receive the payment
Payment Terms: T/T
Supply Ability: 2000 sets per week

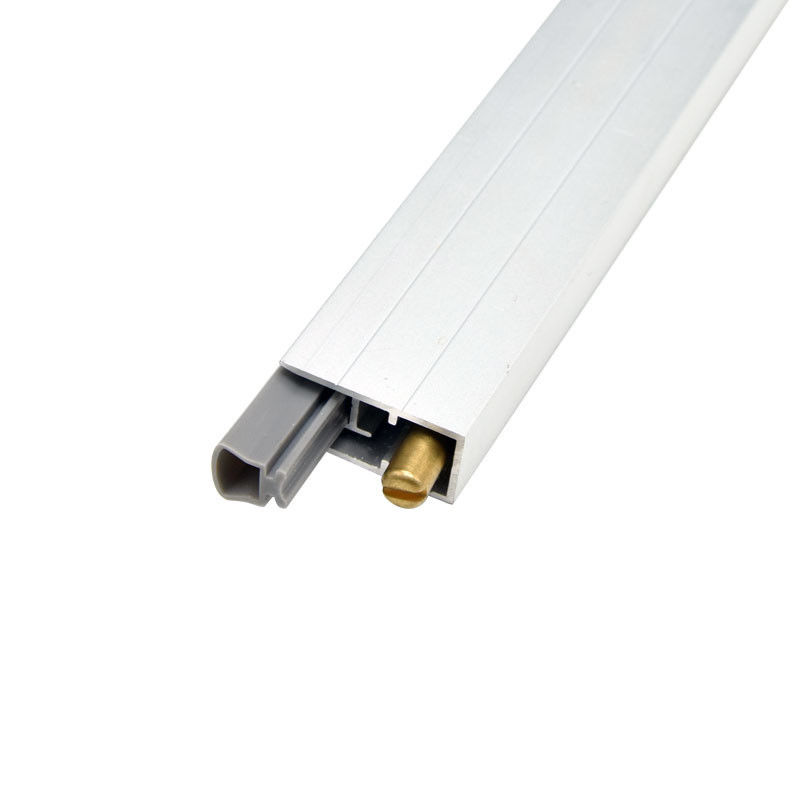

6063 Alumium Soundproof Door Bottom Seals Concealed Automatic Drop Down Weather Strips

Description
Main Materials: 6063 Alumium Alloy Material Of Bottom Rubber Strips: Silicone
Material Of Accessories: Stainless Steel Type: Concealed U Type
Size: 15*32*800mm Available Cut Length: Can Cut To 700mm By Customers,
Function: Sound Proof, Dust Proof, Block Insects Apply To: Home Door, Office Door
High Light:

Alumium Soundproof Door Bottom Seals

,

6063 Alumium Soundproof Door Bottom Seals

Soundproof Seals Door Bottom Seals Concealed Automatic Drop Down Weatherstrips For Wooden Door



When the door is cloesed, there's a big gap between the door leaf and floor, the noise, dust, wind, insects,cockroach and some other things will through it. The Concealed Automatic Drop Down Door Bottom Seals can settle the problems perfectly. The automatic drop down door bottom seal will be automatically dropped down and then sealed the gaps, when open the door, the seals will be retract into the aluminium shell. Compare with other common surface mounted seals, it will not effect the door appearance, will not scratch the floor.



The 6063 aluminiu alloy shell, silicone sealing strips and stainless steel accessories makes it has the long service life.



Features:



Adjust the copper bolt to achieve an optimum seal.
Operated automatically by pressure against the door jamb on its adjustable copper bolt.

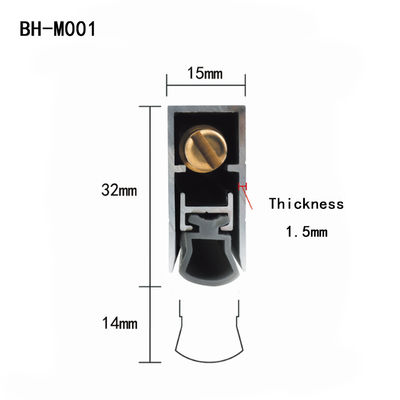

Fully insert into a 15mm x 32mm groove in the bottom of single and double butt hinged timber and metal doors.
Suitable for the wooden fire door, steel fire door, industry doors, hotel doors etc.
Prevent dust, hot and cold air, noisy sound, light, insects or any other things from door bottom



Specifications:



Item No.:  BH-M001-800
Min/Max Gap: 3mm to 14mm
Finish: Clear Anodised
Fixing: Concealed, Fixed by the side plate from both side
Seal: Grey Silicon Sealing Strips
Fixed Part: Stainless Steel, including Screws
Length: 800mm
Other length can do: 250-1500mm, can do custmized
Regular length can cut length:

800mm - cancut to 700mm,

915mm - can cut to 800mm,

1000mm - can cut to 900mm.


6063 Alumium Soundproof Door Bottom Seals Concealed Automatic Drop Down Weather Strips 0

6063 Alumium Soundproof Door Bottom Seals Concealed Automatic Drop Down Weather Strips 1



6063 Alumium Soundproof Door Bottom Seals Concealed Automatic Drop Down Weather Strips 2

6063 Alumium Soundproof Door Bottom Seals Concealed Automatic Drop Down Weather Strips 3



Other similar items for reference:

6063 Alumium Soundproof Door Bottom Seals Concealed Automatic Drop Down Weather Strips 46063 Alumium Soundproof Door Bottom Seals Concealed Automatic Drop Down Weather Strips 5
