Concealed T Type Hidden Groove Automatic Drop Down Door Seal With Side Edge 1000mm

Concealed T Type Hidden Groove Automatic Drop Down Door Seal With Side Edge 1000mm
Concealed T Type Hidden Groove Automatic Drop Down Door Seal With Side Edge 1000mm Concealed T Type Hidden Groove Automatic Drop Down Door Seal With Side Edge 1000mm Concealed T Type Hidden Groove Automatic Drop Down Door Seal With Side Edge 1000mm Concealed T Type Hidden Groove Automatic Drop Down Door Seal With Side Edge 1000mm Concealed T Type Hidden Groove Automatic Drop Down Door Seal With Side Edge 1000mm

Large Image :  Concealed T Type Hidden Groove Automatic Drop Down Door Seal With Side Edge 1000mm

Product Details:
Place of Origin: China
Brand Name: BHMFT
Certification: CE
Model Number: BH-M011-1000
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: EXW price US$ 8.5/ set
Packaging Details: each one packed by a PE bag, 20 sets in a carton, carton size: 115*20*10cm, gross weight is about 15kgs per carton.
Delivery Time: 7-10 days after receive the payment
Payment Terms: T/T
Supply Ability: 1000 sets per week

Concealed T Type Hidden Groove Automatic Drop Down Door Seal With Side Edge 1000mm

Description
Shell Materials: Alumium Alloy Strips Materials: Silicon Rubber Or Fire Retadant Silicone
Accessories: Stainless Steel (including Side Plate And Screws) Type: Concealed Type With Side Edge

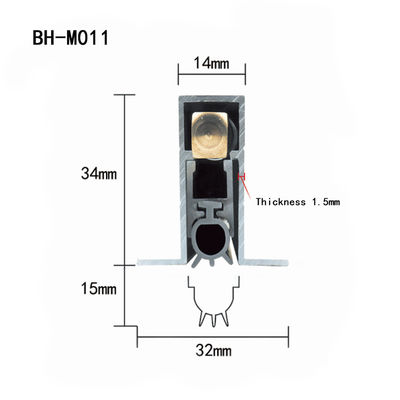

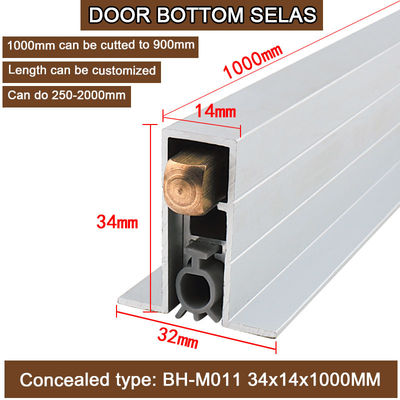

Size: 14*34-32mm Length: 1000mm,
Customized: Length Can Do Customized, From 250-2500mm Available Cut Length: 1000mm- Can Cut To 900mm
Highlight:

T Type Drop Down Door Seal

,

Side Edge Drop Down Door Seal

,

Concealed Automatic Drop Down Door Seal

Concealed T type Hidden Groove Aluminum Weatherstripping Automatical Drop Down Bottom Door Seal With Side Edge 1000mm





Features:



The concealed T type has the side edge on the bottom, can screw fix it from the door bottom, more suitable for the metal door which no need to make the through groove in the door bottom, cannot see any other things except the copper bolt, it is more invisiable.



This Heavy Duty design makes it more fit the fireproof door or some other more heavier door.



A concealed, automatic door bottom seal that is spring loaded to lift clear of the floor when the do or is opened.

It is acoustically designed, featuring silicon gaskets for medium temperature smoke and fire door applications.

Operated automatically by pressure against the door jamb on its adjustable strike.

lt can also be fitted into the bottom rail of a meta door by the fabricator.



Location: Fully mortised into the groove in the bottom of single and double butt-hinged door.

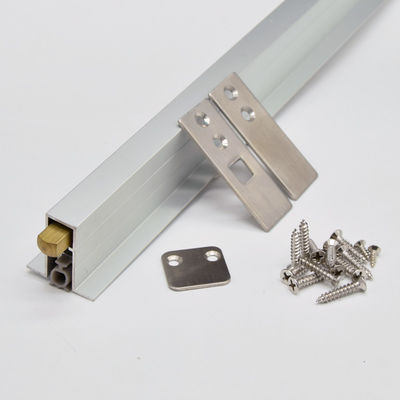

Accessories: Fixing screws and side plates are supplied.



Seal: Silicon Rubber in gray color. Can change it tothe fire retadant silicone strips if need use it for Fire door, pirce is US$0.2 more expensive than normal silicone strips.





Installation instruction:



Install Location: Door Bottom. Full Sealed Stainless Steel End Plates with Screw. Be installed in the pre-slotted under the bottom of door. When the door closed, the door frame press the copper bolt, the seals will drop down and touch the floor automaticly. When the door opened, the seals will lifting automaticly, leave the floor.



Step 1. Pre-slot a slot that size about 15*34mm (which can put the seals inside) under the bottom of door.

Step 2. Make sure the install direction. The end with copper bolt is near to the frame with hinges and the hermetic seal face to floor.
Step 3. Make sure the bottom seal length can fit the door:
The length of BH-M011 bottom seal should be 3-5mm shorter than width of the door if need to make the side plates implant of the door leaf. If not, the length should be same as the door width.
Step 4. According to the frame and door size, cut the end without copper bolt to get the proper length.
Step 5. Adjust : After installation. Open the door and turn on the copper bolt out or in to adjust the drop down parts to touch the floor slightly when the door closed.





Specifications:



Item No.:  BH-M011-1000
Min/Max Gap: 3mm to 14mm
Finish: Clear Anodised
Fixing: Concealed Screw Fix, Fixing holes are pre-slotted
Seal: Silicon Rubber or Fire retadant Silicone
Fixed Part: Stainless Steel, Including Screws
Size can do: 250-2500mm
Length: 1000mm
Can cut length:

1000mm - can be cutted to 900mm



Concealed T Type Hidden Groove Automatic Drop Down Door Seal With Side Edge 1000mm 0Concealed T Type Hidden Groove Automatic Drop Down Door Seal With Side Edge 1000mm 1Concealed T Type Hidden Groove Automatic Drop Down Door Seal With Side Edge 1000mm 2Concealed T Type Hidden Groove Automatic Drop Down Door Seal With Side Edge 1000mm 3Concealed T Type Hidden Groove Automatic Drop Down Door Seal With Side Edge 1000mm 4
