Heavy Duty Concealed Door Bottom Seal 6063 Aluminium Weatherstrips

Heavy Duty Concealed Door Bottom Seal 6063 Aluminium Weatherstrips
Heavy Duty Concealed Door Bottom Seal 6063 Aluminium Weatherstrips Heavy Duty Concealed Door Bottom Seal 6063 Aluminium Weatherstrips Heavy Duty Concealed Door Bottom Seal 6063 Aluminium Weatherstrips Heavy Duty Concealed Door Bottom Seal 6063 Aluminium Weatherstrips Heavy Duty Concealed Door Bottom Seal 6063 Aluminium Weatherstrips

Large Image :  Heavy Duty Concealed Door Bottom Seal 6063 Aluminium Weatherstrips

Product Details:
Place of Origin: China
Brand Name: BHMFT
Certification: CE
Model Number: BH-M015A
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: EXW price US$ 15-25/ set
Packaging Details: each one packed by a PE bag, 10 sets in a carton, for length 915mm, carton size: 105*20*10cm, gross weight is about 13kgs per carton.
Delivery Time: 7-10 days after receive the payment
Payment Terms: T/T
Supply Ability: 1000 sets per week

Heavy Duty Concealed Door Bottom Seal 6063 Aluminium Weatherstrips

Description
Shell Materials: 6063 Alumium Alloy Strips Materials: Silicone Rubber Seals

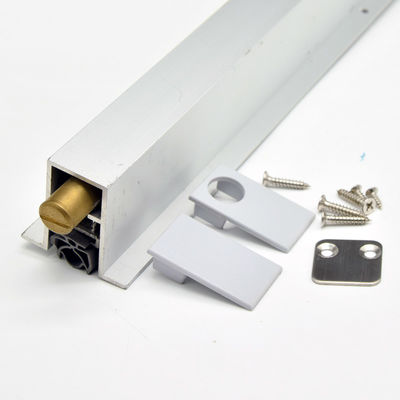

Accessories: 201 Stainless Steel (including Side Plate And Screws) Type: Concealed Type With Side Edge

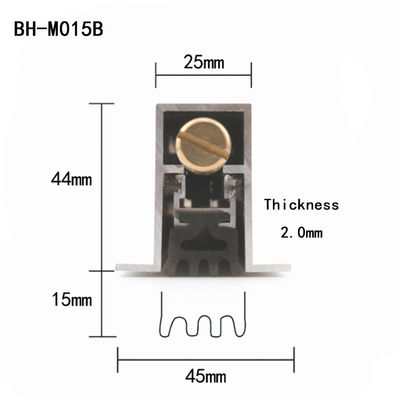

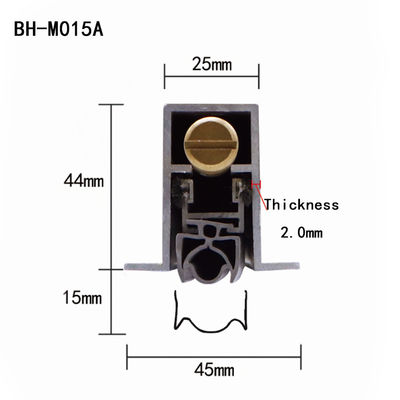

Size: 25*44-45mm Length: Can Do 650-1500mm
Stock Item Length: 800mm, 915mm And 1000mm, Other Length Can Do Customized Available Cut Length: 800mm- Can Cut To 700mm, 915mm- Can Cut To 800mm, 1000mm- Can Cut To 900mm
High Light:

6063 Aluminium Concealed Door Bottom Seal

,

Concealed Door Bottom Seal Aluminium Weatherstrips

,

BHMFT Concealed Door Bottom Seal

Heavy Duty Automatic Door Bottom Seals Concealed Aluminium Weatherstrips for Fireproof Door Raven RP70 Si





Features:

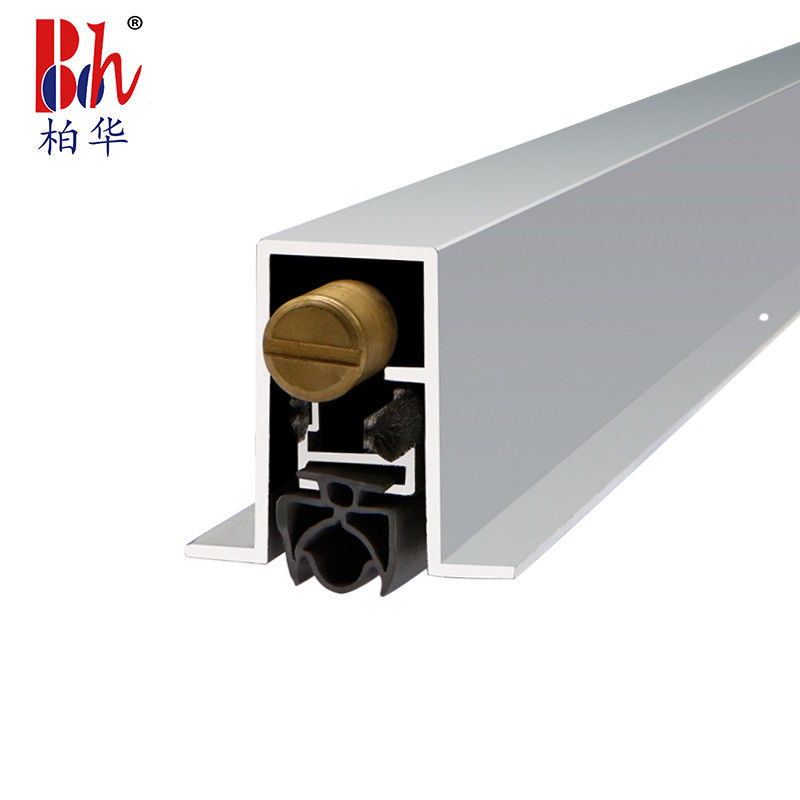

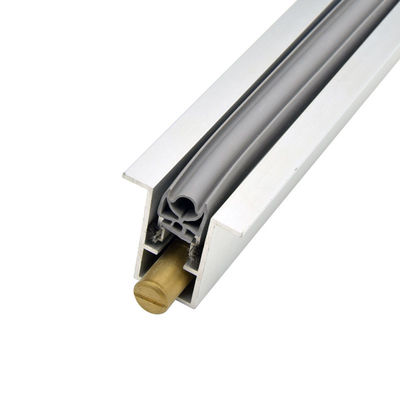

This item is similar as RAVEN RP70Si, it has the side edge on the bottom, can screw fix it from the door bottom, suitable for the metal door which no need to make the through groove in the door, cannot see any other things except the copper bolt, it is more invisiable. This Heavy Duty design makes it more fit the heavier door, can be used for fireproof door.





Specifications:



Item No.:  BH-M015A
Min/Max Gap: 3mm to 15mm
Finish: Clear Anodised
Fixing: Concealed Screw Fix, Fixing holes are pre-slotted
Seal: Grey Silicone Rubber
Fixed Part: Stainless Steel Screws, Nylon side plate
Size can do: 650-1500mm
Regular length: 800mm, 915mm, 1000mm
Regular length can cut length:

800mm - cancut to 700mm,

915mm - can cut to 800mm,

1000mm - can cut to 900mm.



Heavy Duty Concealed Door Bottom Seal 6063 Aluminium Weatherstrips 0Heavy Duty Concealed Door Bottom Seal 6063 Aluminium Weatherstrips 1Heavy Duty Concealed Door Bottom Seal 6063 Aluminium Weatherstrips 2Heavy Duty Concealed Door Bottom Seal 6063 Aluminium Weatherstrips 3
