Product Details:
|
| Shell Materials: | 6063 Alumium Alloy | Strips Materials: | EPDM Rubber |
|---|---|---|---|

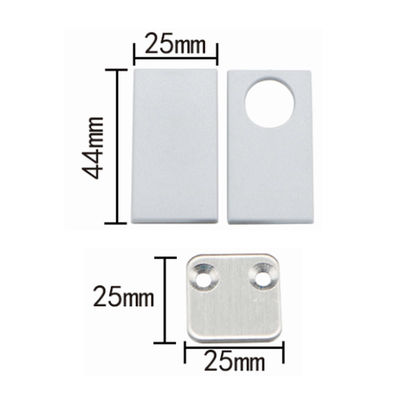

| Pluger: | Round Copper Bolt | Accessories: | Nylon Side Covers And 201 Stainless Steel Screws |

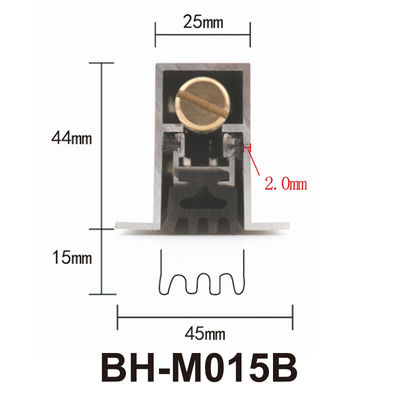

| Type: | Concealed Type With Side Edge | Size: | 25*44mm |
| Length: | Can Do 300-1500mm | Stock Item Length: | 800mm, 915mm And 1000mm |
| High Light: | CE Aluminium Automatic Door Bottom Seals,EPDM Automatic Door Bottom Seals,Raven Rp70 |
||

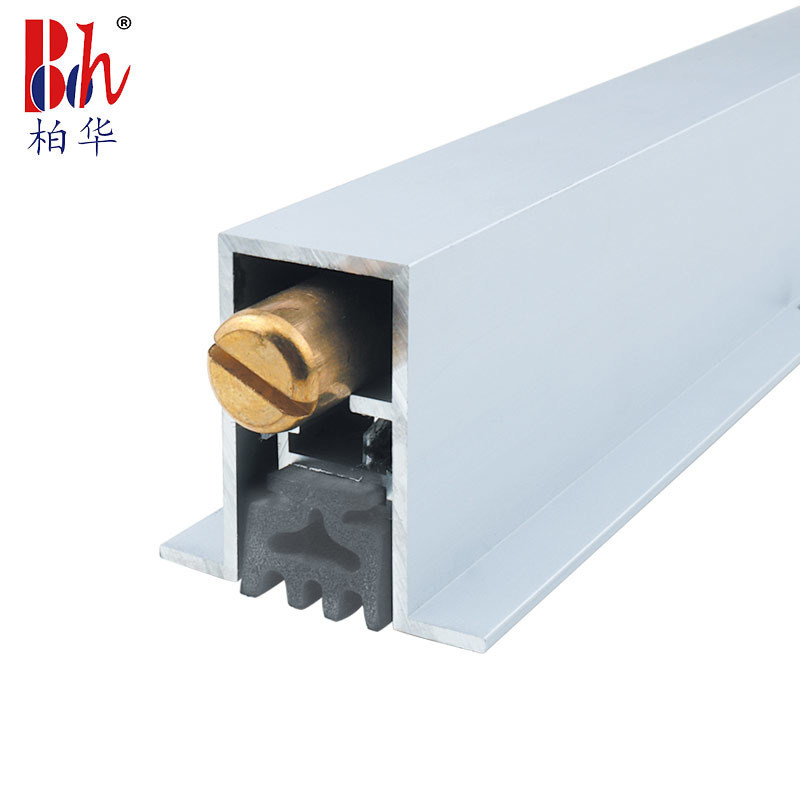

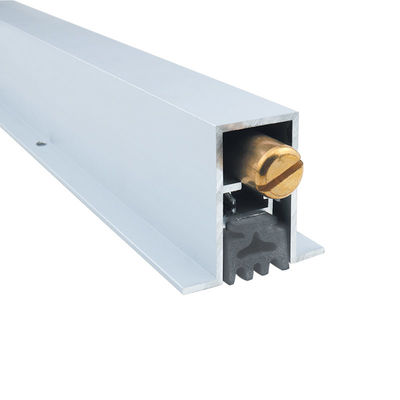

Concealed Aluminium Automatic Door Bottom Seals with EPDM Rubber Raven R70 Heavy Duty Acoustic Weatherstrips for Door
Features:
This Automatic door bottom seals is similar as RAVEN RP70, It is made by 2.0mm thickness 6063 aluminium alloy shell, Round copper plunger, EPDM rubber strips, Nylon side cover and stainless steel screws. It has the side edge on the bottom, can screw fix it from the door bottom, suitable for the wooden door and metal door, can fixed by screws from the bottom. This Heavy Duty design makes it more fit the heavier door, can be used for fireproof door. It is ensure an efficient seal with an adjustable plunger that is compressed against the frame as the door is closed, activating a concealed flat spring mechanism, this mechanism drop down the seals smoothly from the housing. The seal compresses on either even or uneven surfaces and retracts automatically when the door is opened.
These kinds of Automatic door bottom seals serve many important functions, including blocking below things:
1, Sound
2, Air
3, Smoke
4, Insects
5, Dust
6, Wind
Specifications:
| Item No.: | BH-M015B |
| Min/Max Gap: | 3mm to 15mm |
| Finish: | Clear Anodised |
| Fixing: | Concealed Screw Fix |
| Seal: | Silicone Rubber |
| Fixed Part: | Stainless Steel Screws |
| Size can do: | 650-1500mm |
| Regular length: | 800mm, 915mm, 1000mm |
| Regular length can cut length: |
800mm - cancut to 700mm, 915mm - can cut to 800mm, 1000mm - can cut to 900mm. |
