RAVEN RP38 Automatic Door Bottom Seals H Shaped Clear Anodised Finish

Certification
China Foshan Bohua Decoration Materials Co., Ltd. certification
China Foshan Bohua Decoration Materials Co., Ltd. certification
I'm Online Chat Now

RAVEN RP38 Automatic Door Bottom Seals H Shaped Clear Anodised Finish

RAVEN RP38 Automatic Door Bottom Seals H Shaped Clear Anodised Finish
RAVEN RP38 Automatic Door Bottom Seals H Shaped Clear Anodised Finish RAVEN RP38 Automatic Door Bottom Seals H Shaped Clear Anodised Finish RAVEN RP38 Automatic Door Bottom Seals H Shaped Clear Anodised Finish RAVEN RP38 Automatic Door Bottom Seals H Shaped Clear Anodised Finish RAVEN RP38 Automatic Door Bottom Seals H Shaped Clear Anodised Finish

Large Image :  RAVEN RP38 Automatic Door Bottom Seals H Shaped Clear Anodised Finish

Product Details:
Place of Origin: China
Brand Name: BHMFT
Certification: CE
Model Number: BH-M016B
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: EXW price US$ 18-30/ set
Packaging Details: each one packed by a PE bag, 10 sets in a carton, for length 915mm, carton size: 105*20*10cm, gross weight is about 14kgs per carton.
Delivery Time: 7-10 days after receive the payment
Payment Terms: T/T
Supply Ability: 1000 sets per week

RAVEN RP38 Automatic Door Bottom Seals H Shaped Clear Anodised Finish

Description
Shell Materials: Alumium Alloy Strips Materials: EPDM Foam Rubber Seals

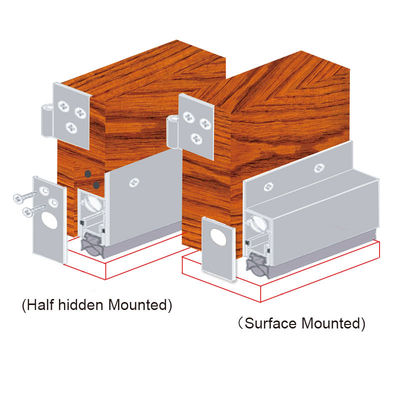

Accessories: Nylon Side Cover And Stainless Steel Screws Type: Surface Mounted Type / Half Hidden Type

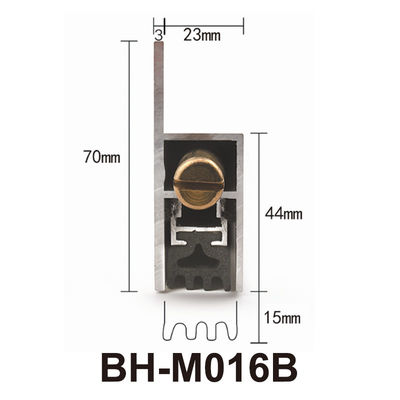

Size: 26*44-70mm Length: Can Do 650-1500mm
Stock Item Length: 800mm, 915mm And 1000mm, Other Length Can Do Customized Available Cut Length: 800mm- Can Cut To 700mm, 915mm- Can Cut To 800mm, 1000mm- Can Cut To 900mm
High Light:

RAVEN RP38 Automatic Door Bottom Seals

,

Automatic Door Bottom Seals Clear Anodised

h Shape Automatic Door Bottom Seals Raven RP38 Heavy Duty Surface Mounted / Half Hidden Aluminium Weatherstrips for Door





Features:

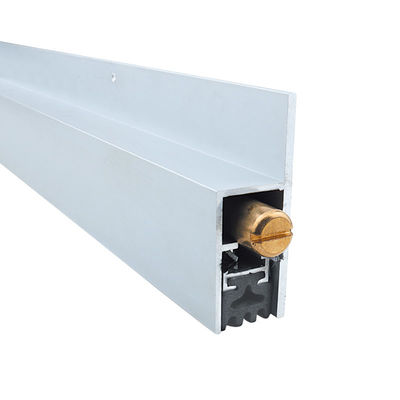

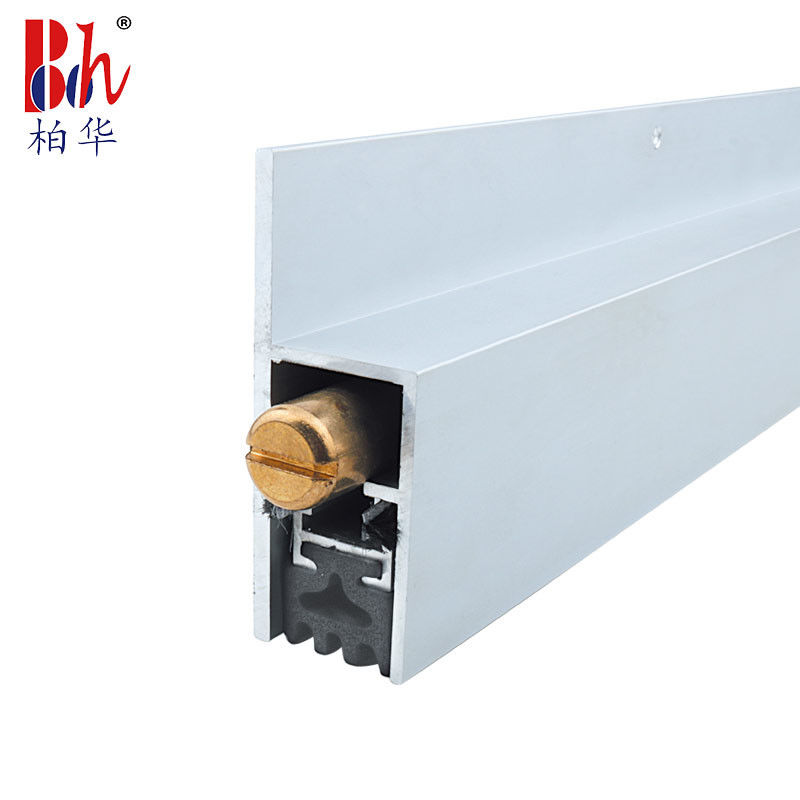

This item is similar as RAVEN RP38, "h" shape Aluminium profile with EPDM rubber strips, can screw fix on the bottom of the door surface, no need to make the groove under the door. Also can make half groove on the door and then fix this item on it, make the back side level with the door surface, can protect the door bottom not brocken by hit, some customers used it for the Hosipital door.Operated automatically by press against the door plug (the round copper bolt). Adjust the adjustable plug (the round copper bolt) to achieve an optimum seal.

RAVEN RP38 Automatic Door Bottom Seals H Shaped Clear Anodised Finish 0





Specifications:



Item No.:  M016B
Min/Max Gap: 3mm to 15mm
Finish: Clear Anodised
Fixing: Concealed Screw Fix, Fixing holes are pre-slotted
Seal: Grey Silicone Rubber or Black EPDM Foam Rubber

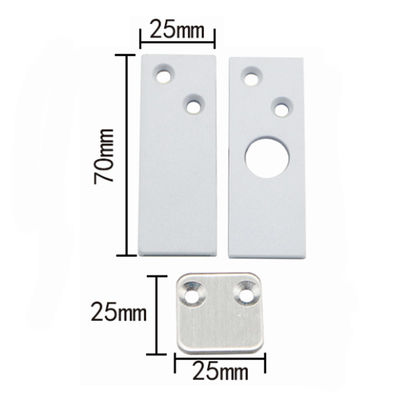

Fixed Part: Stainless Steel Screws, Nylon side plate
Size can do: 650-1500mm
Regular length: 800mm, 915mm, 1000mm
Regular length can cut length:

800mm - cancut to 700mm,

915mm - can cut to 800mm,

1000mm - can cut to 900mm.



RAVEN RP38 Automatic Door Bottom Seals H Shaped Clear Anodised Finish 1RAVEN RP38 Automatic Door Bottom Seals H Shaped Clear Anodised Finish 2RAVEN RP38 Automatic Door Bottom Seals H Shaped Clear Anodised Finish 3RAVEN RP38 Automatic Door Bottom Seals H Shaped Clear Anodised Finish 4
