Product Details:
|
| Main Materials: | 6063 Alumium Alloy | Sealing Strips: | Silicone Sealing Strips |
|---|---|---|---|
| Fixed Part: | Stainless Steel | Type: | Concealed With Side Edge |
| Size: | 15*30-32mm | Length: | Can Do 300-1500mm |
| Regular Length: | 800mm, 915mm And 1000mm | Available Cut Length: | 800mm- Can Cut To 700mm, 915mm- Can Cut To 800mm, 1000mm- Can Cut To 900mm |
| Function: | Sound Proof, Dust Proof, Block Insects | Apply To: | Home Door, Hotel Door, Office Door |
| High Light: | Concealed Automatic Door Bottom Weatherstrips,Concealed Automatic Door Bottom 15*30mm,automatic door bottom seal Weatherstrips |
||

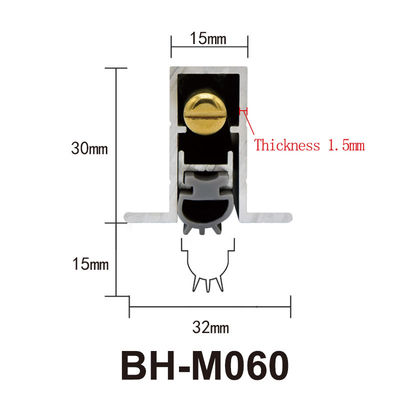

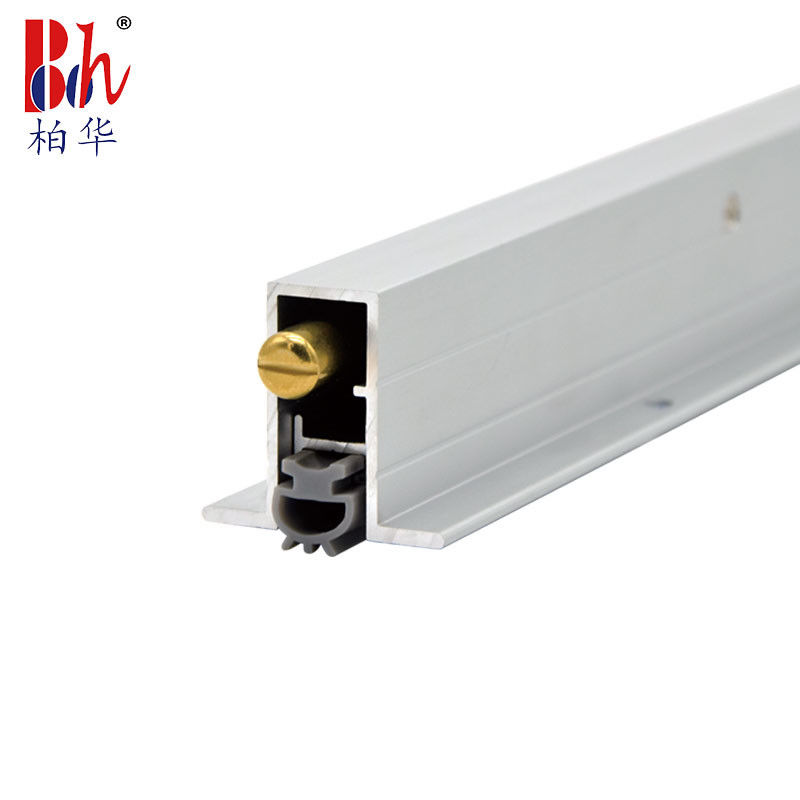

Aluminium Automatic Door Bottom Seals Concealed Sound Proof Weatherstrips With Side Edge For Door 15*30mm
Features:
Operated automatically by press against the door plug (the round copper bolt).
Adjust the adjustable plug (the round copper bolt) to achieve an optimum seal.
Fully put it into a 15mm x 30mm groove on the bottom of single and double butt hinged timber and metal doors.
This Aluminium shell has the side edge, can screw fix it in the door bottom.
Suitable for the wooden fire door, steel fire door, industry doors, hotel doors, entrance door, room door and etc.
Prevent dust, hot and cold air, noisy sound, light from door bottom
High quality silicone seal with long life service.
Beautiful 6063 aluminum body with gold color copper bolt.
When it comes to soundproofing a door a tight seal is critical for proper sound control. Your largest gap is at the bottom of the door and nothing can seal that as well as an automatic door bottom.
Specifications:
| Item No.: | BH-M060 |
| Min/Max Gap: | 3mm to 15mm |
| Finish: | Clear Anodised |
| Fixing: | Concealed Screw Fix, Fixing holes are pre-slotted |
| Seal: | Grey Silicon Rubber |
| Fixed Part: | Stainless Steel, Including Screws |
| Size can do: | 300-1500mm |
| Regular length: | 800mm, 915mm, 1000mm |
|
Regular length can cut length: |
800mm - cancut to 700mm, 915mm - can cut to 800mm, 1000mm - can cut to 900mm. |
